TC Series

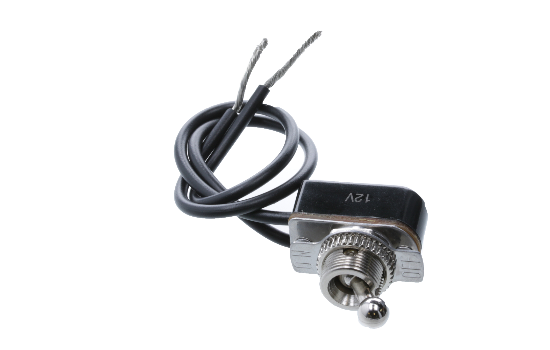

Medium duty toggle switch compactly designed and with different bushing/toggle configurations. Termination choices include screw terminals and wire leads, with which TC series acts as a pre-wired toggle switch for direct electrical connection.

Medium duty toggle switch compactly designed and with different bushing/toggle configurations appropriate for a variety of uses. Termination choices include screw terminals and wire leads, with which TC series acts as a pre-wired toggle switch for direct
Medium duty toggle switch compactly designed and with different bushing/toggle configurations. Termination choices include screw terminals and wire leads, with which TC series acts as a pre-wired toggle switch for direct electrical connection.
Medium duty toggle switch compactly designed and with different bushing/toggle configurations appropriate for a variety of uses. Termination choices include screw terminals and wire leads, with which TC series acts as a pre-wired toggle switch for direct
Medium duty toggle switch compactly designed and with different bushing/toggle configurations. Termination choices include screw terminals and wire leads, with which TC series acts as a pre-wired toggle switch for direct electrical connection.
TC_360view

Electrical Rating

6A 12V DC

Circuitry

SPST

Terminal

SC 6-32UNC,WIRE

Position

OFF-ON

Actuator

Ball 4.3mm

Standard

Part Name Circuitry Rating Action Terminal Actuator
TC-1A-DC-6-1 2P SPST 6A 12V DC OFF-ON SC 6-32UNC Ball 4.3mm
TC-1A-DC-W-1 2P SPST 6A 12V DC OFF-ON WIRE Ball 4.3mm
TC-1A-DC-6-2 2P SPST 6A 12V DC OFF-ON SC 6-32UNC Standard
TC-1A-DC-W-2 2P SPST 6A 12V DC OFF-ON WIRE Standard

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
