Push Switches

Switch Components' Pushbuttons include momentary and latching versions with the widest selection of actuator styles, shapes and colors in order to accommodate different application demands for standard industry applications such as appliances, electronics, medical and test instrumentation, office equipment and other commercial applications. We offer IP rated versions designed to be used in potentially hostile settings.

PA Series

  • The PA Series provides a compact yet rugged solution to general purpose switch needs. It is designed with a chrome plated, brass face nut that supports longevity of the switch. This versatile switch is available in normally open and normally close circuits with a variety of termination and rating options
  • Electrical Rating : 15A 12V DC,10A 12V DC
  • Circuitry : SPST
  • Terminal : SC M4,SC 6-32UNC,WIRE,SO
  • Position : OFF-(ON),ON-(OFF)

PB Series

  • Sealed push button switch with a black silicone waterproof sealing that provides a rating up to IP65. PB Series switches are available in either a momentary or latching actuation and with dependent and independent LED illumination in four different colors. Snap-in design for easy installation into a majority of standard panel cutouts
  • Electrical Rating : 20A 14V DC, 10A 28V DC,20A 14V DC,10A 125V AC, 6A 250V AC, 1/2HP 125V-250V AC
  • Circuitry : SPST,DPST
  • Terminal : 187" SQ
  • Position : OFF-ON,OFF-(ON)

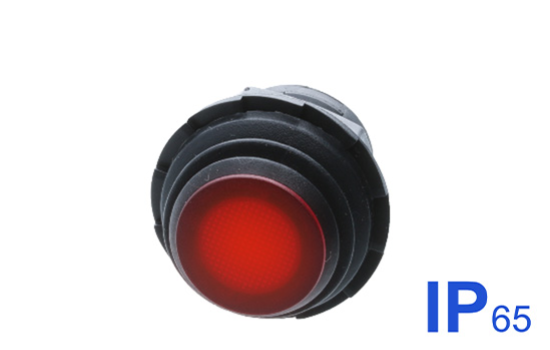

PC Series

  • PC Push Button Switch Series is designed with a round actuator and body and an IP65 rated splash proof rubber boot that ensures protection against water and moisture (IP 65). Find PC Series available in either a momentary or latching actuation and with red LED illumination
  • Electrical Rating : 10A 14V DC
  • Circuitry : SPST
  • Terminal : 250" SQ
  • Position : OFF-ON,OFF-(ON)

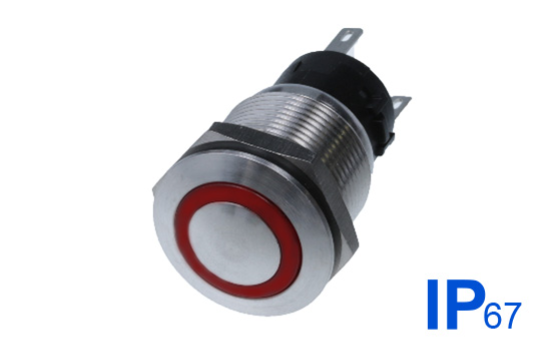

PD Series

  • Switch Component’s Inc anti-vandal switches are commonly used for vandal resistance in public applications. Designed with a stainless steel body and sealed to an IP67 rating, PD series is available in three ring illuminated colors: red, blue, and green and in a momentary or latching actuation
  • Electrical Rating : 10A 14V DC
  • Circuitry : SPDT,DPDT
  • Terminal : 110" SQ
  • Position : ON-ON,ON-(ON)
