PB Series

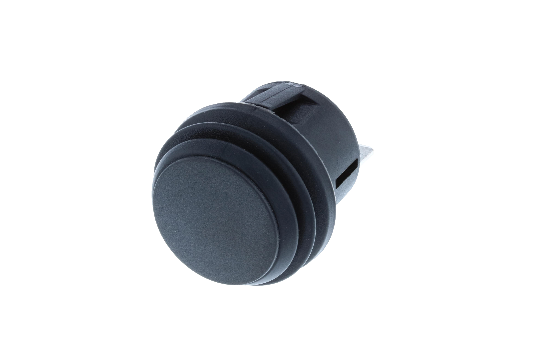

Sealed push button switch with a black silicone waterproof sealing that provides a rating up to IP65. PB Series switches are available in either a momentary or latching actuation and with dependent and independent LED illumination in four different colors

Switch Components' Pushbuttons include momentary and latching versions with the widest selection of actuator styles, shapes and colors in order to accommodate different application demands for standard industry applications such as appliances, electronics
Switch Components' Pushbuttons include momentary and latching versions with the widest selection of actuator styles, shapes and colors in order to accommodate different application demands for standard industry applications such as appliances, electronics
Switch Components' Pushbuttons include momentary and latching versions with the widest selection of actuator styles, shapes and colors in order to accommodate different application demands for standard industry applications such as appliances, electronics
Switch Components' Pushbuttons include momentary and latching versions with the widest selection of actuator styles, shapes and colors in order to accommodate different application demands for standard industry applications such as appliances, electronics
PB_360view

Electrical Rating

20A 14V DC, 10A 28V DC,20A 14V DC

Circuitry

SPST,DPST

Terminal

187" SQ

Position

OFF-ON,OFF-(ON)

Actuator

Black w/ Waterproof

Fully Illuminated LED-d Amber w/ Waterproof

Fully Illuminated LED-d Green w/ Waterproof

Fully Illuminated LED-d Red w/ Waterproof

Fully Illuminated LED-d Blue w/ Waterproof

Fully Illuminated LED-i Amber w/ Waterproof

Fully Illuminated LED-i Green w/ Waterproof

Fully Illuminated LED-i Red w/ Waterproof

Fully Illuminated LED-i Blue w/ Waterproof

Part Name Circuitry Rating Action Terminal Actuator
PB-1A-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black w/ Waterproof
PB-1A-DC-2-ADL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Amber w/ Waterproof
PB-1A-DC-2-GDL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Green w/ Waterproof
PB-1A-DC-2-RDL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Red w/ Waterproof
PB-1A-DC-2-UDL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Blue w/ Waterproof
PB-1A-DC-2-AIL 4P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-i Amber w/ Waterproof
PB-1A-DC-2-GIL 4P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-i Green w/ Waterproof
PB-1A-DC-2-RIL 4P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-i Red w/ Waterproof
PB-1A-DC-2-UIL 4P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-i Blue w/ Waterproof
PB-1B-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC OFF-(ON) 187" SQ Black w/ Waterproof
PB-1B-DC-2-ADL 3P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Amber w/ Waterproof
PB-1B-DC-2-GDL 3P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Green w/ Waterproof
PB-1B-DC-2-RDL 3P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Red w/ Waterproof
PB-1B-DC-2-UDL 3P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Blue w/ Waterproof
PB-1B-DC-2-AIL 4P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-i Amber w/ Waterproof
PB-1B-DC-2-GIL 4P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-i Green w/ Waterproof
PB-1B-DC-2-RIL 4P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-i Red w/ Waterproof
PB-1B-DC-2-UIL 4P SPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-i Blue w/ Waterproof
PB-2A-DC-2-B 4P DPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black w/ Waterproof
PB-2A-DC-2-ADL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Amber w/ Waterproof
PB-2A-DC-2-GDL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Green w/ Waterproof
PB-2A-DC-2-RDL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Red w/ Waterproof
PB-2A-DC-2-UDL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Blue w/ Waterproof
PB-2B-DC-2-B 4P DPST 20A 14V DC, 10A 28V DC OFF-(ON) 187" SQ Black w/ Waterproof
PB-2B-DC-2-ADL 4P DPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Amber w/ Waterproof
PB-2B-DC-2-GDL 4P DPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Green w/ Waterproof
PB-2B-DC-2-RDL 4P DPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Red w/ Waterproof
PB-2B-DC-2-UDL 4P DPST 20A 14V DC OFF-(ON) 187" SQ Fully Illuminated LED-d Blue w/ Waterproof

"Drawings for reference only. The specifications and approvals subject to change without notice"
