HDB2 Series

Contact your Switch Components sales representative at sales@switchcomp.com for additional details.

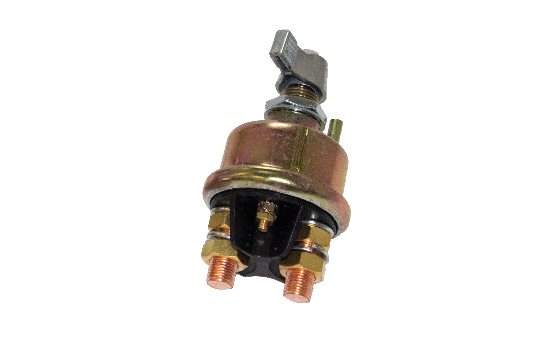

High Current battery disconnect switch that boasts a 300A continuous rating. Heavy-duty steel construction (IP67), sealed with O-rings at base and mounting stem, and with case and terminal insulator. With indexing pin and optional lock-out feature. (1)

High Current battery disconnect switch that boasts a 300A continuous rating. Heavy-duty steel construction (IP67), sealed with O-rings at base and mounting stem, and with case and terminal insulator. With indexing pin and optional lock-out feature. (2)

High Current battery disconnect switch that boasts a 300A continuous rating. Heavy-duty steel construction (IP67), sealed with O-rings at base and mounting stem, and with case and terminal insulator. With indexing pin and optional lock-out feature. (1)

High Current battery disconnect switch that boasts a 300A continuous rating. Heavy-duty steel construction (IP67), sealed with O-rings at base and mounting stem, and with case and terminal insulator. With indexing pin and optional lock-out feature. (2)

Switch Function	OFF - ON,OFF - ON with AFD
Continuous Rating	300A 24VDC
Intermittent Rating	2000A / 5sec
Cranking Rating	1000A / 30secs
Features	Index Pin, Lock-Out Kit
Certificates

Specifications
Technical Resource

Part Name	Switch Function	Continuous Rating	Intermittent Rating	Features
HDB2-1A-3-A2	OFF - ON	300A 24VDC	2000A / 5sec	Index Pin, Lock-Out Kit
HDB2-2A-3-A1	OFF - ON with AFD	300A 24VDC	2000A / 5sec	Index Pin
HDB2-2A-3-A2	OFF - ON with AFD	300A 24VDC	2000A / 5sec	Index Pin, Lock-Out Kit
HDB2-1A-3-A1	OFF - ON	300A 24VDC	2000A / 5sec	Index Pin

HDB2 Series Battery Switch HDB2-1A-3-A2
HDB2 Series Battery Switch HDB2-2A-3-A1
HDB2 Series Battery Switch HDB2-2A-3-A2
HDB2 Series Battery Switch HDB2-1A-3-A1

"Drawings for reference only. The specifications and approvals subject to change without notice"
