RB Series

Contact your Switch Components sales representative at sales@switchcomp.com for more illumination, legend and circuit options. An optional plug-in terminal connector enables pre-wiring of wire harnesses.

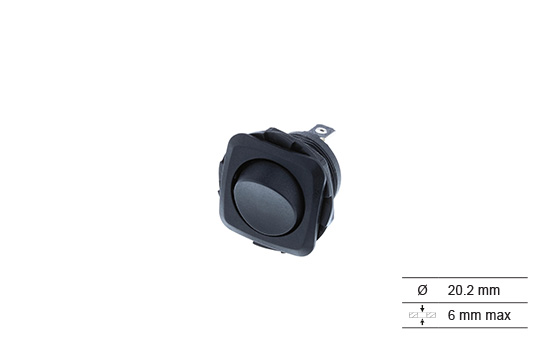

Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
RB1new8
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
RB1new8
RB_360view

Electrical Rating

 20A 14VDC,20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC

Circuitry

 SPST,SPDT

Terminal

 Quick Connect - 0.187"

Position

 (ON)-OFF-(ON),OFF-(ON),OFF-ON,ON-(OFF),ON-(ON),ON-OFF-(ON),ON-OFF-ON,ON-ON

Actuator

Black

Black with legend

Illuminated - Amber LED

Illuminated - Blue LED

Illuminated - Green LED

Illuminated - Red LED

Two-color: Black and Red
Part Name Circuitry Rating Action Terminal Actuator
RB1-1A-DC-2-B 2P SPST 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC OFF-ON Quick Connect - 0.187" Black
RB1-1A-DC-2-B-1 2P SPST 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC OFF-ON Quick Connect - 0.187" Black with legend
RB1-1A-DC-2-B-2 2P SPST 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC OFF-ON Quick Connect - 0.187" Black with legend
RB1-1A-DC-2-B-3 2P SPST 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC OFF-ON Quick Connect - 0.187" Black with legend
RB1-1A-DC-2-R 2P SPST 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC OFF-ON Quick Connect - 0.187" Two-color: Black and Red
RB1-1B-DC-2-B 2P SPST 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC OFF-(ON) Quick Connect - 0.187" Black
RB1-1C-DC-2-B 2P SPST 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC ON-(OFF) Quick Connect - 0.187" Black
RB1-1D-DC-2-B 3P SPDT 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC ON-ON Quick Connect - 0.187" Black
RB1-1E-DC-2-B 3P SPDT 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC ON-(ON) Quick Connect - 0.187" Black
RB1-1F-DC-2-B 3P SPDT 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC ON-OFF-ON Quick Connect - 0.187" Black
RB1-1G-DC-2-B 3P SPDT 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC (ON)-OFF-(ON) Quick Connect - 0.187" Black
RB1-1H-DC-2-B 3P SPDT 20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC ON-OFF-(ON) Quick Connect - 0.187" Black
RB2-1A-DC-2-AL 3P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Amber LED
RB2-1A-DC-2-GL 3P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Green LED
RB2-1A-DC-2-RL 3P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Red LED
RB2-1A-DC-2-UL 3P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Blue LED
RB3-1A-DC-2-AL 4P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Amber LED
RB3-1A-DC-2-GL 4P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Green LED
RB3-1A-DC-2-RL 4P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Red LED
RB3-1A-DC-2-UL 4P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Blue LED
RB5-1A-DC-2-RL 3P SPST 20A 14VDC OFF-ON Quick Connect - 0.187" Illuminated - Red LED
