PP Series

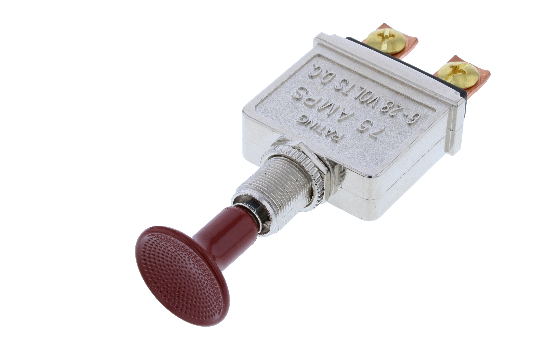

Switch Components Inc’s PP series is a plated extra heavy duty push-pull switch designed with rugged die cast housing to ensure extra strength and durability. It suits numerous applications. Available in three different colors.

Our Push-Pull switches are designed with a finished look that is professional and sleek, typically used in older automotive models as a headlight switch. These switches feature a rugged die cast housing to extra strength and durability and an easy mountin
PP IS Our Push-Pull switches are designed with a finished look that is professional and sleek, typically used in older automotive models as a headlight switch. These switches feature a rugged die cast housing to extra strength and durability and an easy m
Our Push-Pull switches are designed with a finished look that is professional and sleek, typically used in older automotive models as a headlight switch. These switches feature a rugged die cast housing to extra strength and durability and an easy mountin
PP IS Our Push-Pull switches are designed with a finished look that is professional and sleek, typically used in older automotive models as a headlight switch. These switches feature a rugged die cast housing to extra strength and durability and an easy m
PP_360view

Electrical Rating

75A 6-28V DC

Circuitry

SPST

Terminal

SC 8-32UNC

Position

OFF-ON

Actuator

Chrome Plated

Red Plated

Black Plated

Part Name Circuitry Rating Action Terminal Actuator
PP-1A-DC-7-M 2P SPST 75A 6-28V DC OFF-ON SC 8-32UNC Chrome Plated
PP-1A-DC-7-R 2P SPST 75A 6-28V DC OFF-ON SC 8-32UNC Red Plated
PP-1A-DC-7-B 2P SPST 75A 6-28V DC OFF-ON SC 8-32UNC Black Plated

"Drawings for reference only. The specifications and approvals subject to change without notice"
