Toggle Switches

Switch Components offers a wide variety of nylon and metal heavy-duty Toggle Switches which are designed to fulfil the needs of today's automotive, marine and industrial applications along with a wide spectrum of general or custom electrical applications.

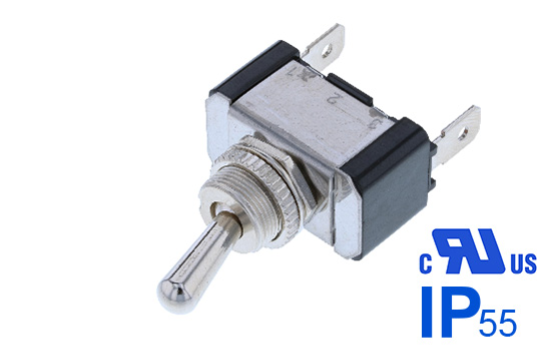

TA Series

Single Pole toggle switch - LED illuminated option - Suitable for AC/DC applications
Electrical Rating : 15A 125VAC 1/8HP 10A 250VAC 1/3HP,20A 12VDC,20A 12VDC 10A 24VDC,21A 14VDC, 20A 125VAC 10A 277VAC, 3/4HP 125-250VAC, 12(4)A 125/250VAC
Circuitry : SPST,SPDT
Terminal : #6-32 Screw,M3 Screw,Quick Connect - 0.250",Solder Lug
Position : (ON)-OFF-(ON),OFF-(ON),OFF-ON,ON-(ON),ON-OFF-(ON),ON-OFF-ON,ON-ON

TB1 toggles fit the industry standard 0.48 in diameter mounting hole .These switches can be used in a variety of applications including automotive, marine, commercial or industrial. A rubber boot for water and dust protection is offered as an accessory.

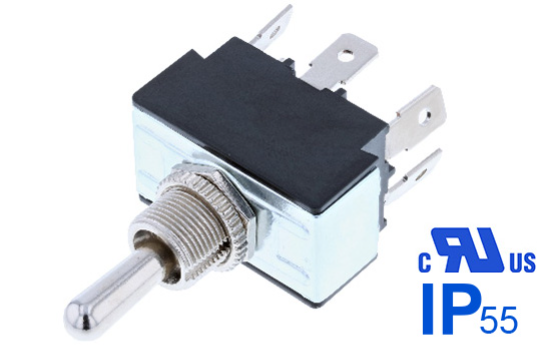

TB Series

Double Pole toggle switch - Suitable for AC/DC applications
Electrical Rating : 20A 12VDC 10A 24VDC,21A 14VDC, 20A 125VAC 10A 277VAC, 1 1/2HP 125-250VAC, 10(4)A 125/250VAC
Circuitry : SPST,SPDT,DPDT,DPST
Terminal : #6-32 Screw,M3 Screw,Quick Connect - 0.250",Solder Lug
Position : (ON)-OFF-(ON),(ON)-ON-(ON),OFF-(ON),OFF-ON,ON-(ON),ON-OFF-(ON),ON-OFF-ON,ON-ON,ON-ON-(ON)

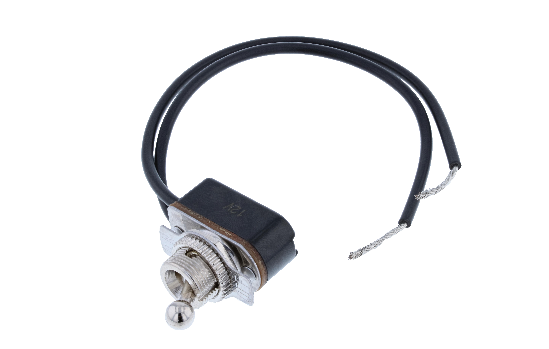

TC Series

Compact switch - Pre-wired housing option - Suitable for AC/DC applications
Electrical Rating : 6A 12VDC,6A 12VDC, 6A 125VAC 3A 250VAC
Circuitry : SPST
Terminal : #6-32 Screw,Wire
Position : OFF-ON

Switch Components offers a wide variety of nylon and metal heavy-duty Toggle Switches which are designed to fulfil the needs of today's automotive, marine and industrial applications along with a wide spectrum of general or custom electrical applications.

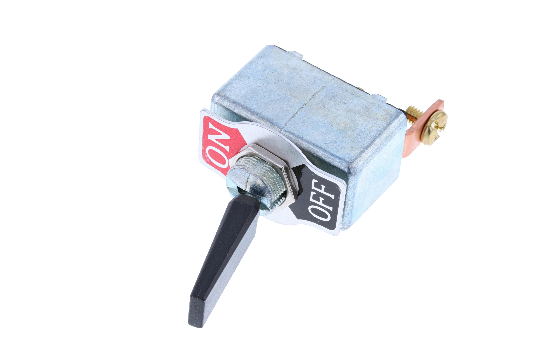

TD Series

Heavy-Duty switch - Designed for harsh environments
Electrical Rating : 50A 12VDC
Circuitry : SPST,SPDT
Terminal : M4 Screw
Position : (ON)-OFF-(ON),OFF-ON,ON-OFF-ON,ON-ON

Wedge and duckbill toggles manufactured from a polycarbonate material that ensures protection against water and moisture, ideal for marine applications. Available with different handle options and LED illumination in four different colors: Red, Amber, Gre

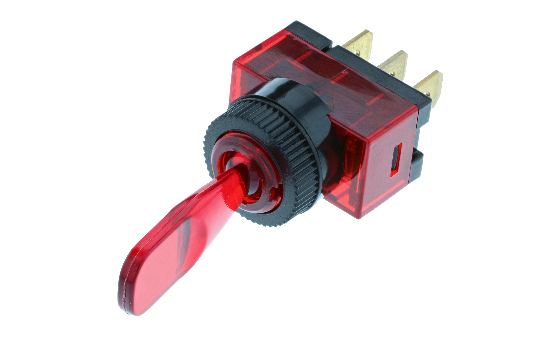

TE Series

Illuminated toggle switch - Wedge and duckbill toggle
Electrical Rating : 20A 12VDC
Circuitry : SPST,SPDT
Terminal : Quick Connect - 0.250"
Position : OFF-ON,ON-OFF-ON,ON-ON

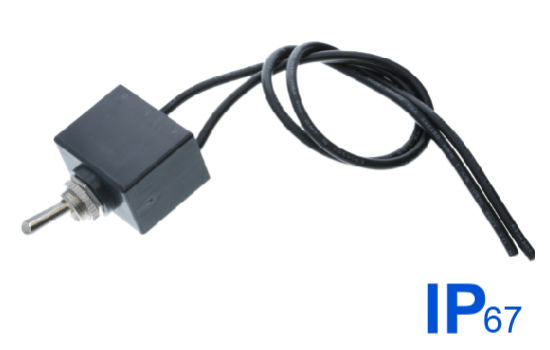

TB Series - Waterproof

TB Waterproof Series

Single Pole and Double Pole toggle switch - IP67 sealed - Pre-wired housing
Electrical Rating : 25A 12VDC 15A 24VDC
Circuitry : SPST,SPDT,DPST
Terminal : Wire
Position : (ON)-OFF-(ON),OFF-(ON),OFF-ON,ON-OFF-ON,ON-ON
