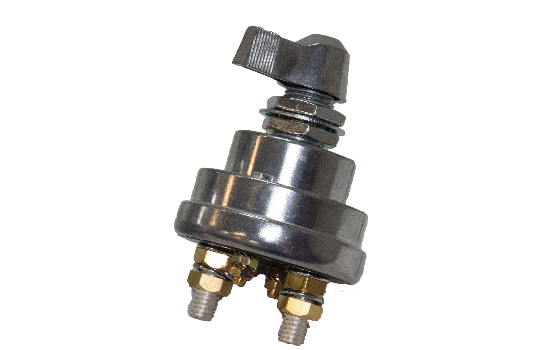

HDB3 Series

Designed for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem.

Designed for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem.
Designed for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem.
Designed for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem.
Designed for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem.

Switch Function

SPST OFF-ON, DPST OFF-ON

Continuous Rating

24VDC 180A, 24VDC - Large Studs: 180A, Small Studs: 20A

Intermittent Rating

1000A / 15sec

Cranking Rating

-

Features

-, Index Pin, Plastic Encapsulated Key
Part Name Switch Function Continuous Rating Intermittent Rating Features
HDB3-1A-3-A SPST OFF-ON 24VDC 180A 1000A / 15sec -
HDB3-1A-3-A1 SPST OFF-ON 24VDC 180A 1000A / 15sec Index Pin
HDB3-1A-3-C1 SPST OFF-ON 24VDC 180A 1000A / 15sec Index Pin, Plastic Encapsulated Key
HDB3-2A-3-A DPST OFF-ON 24VDC - Large Studs: 180A, Small Studs: 20A 1000A / 15sec -
HDB3-2A-3-A1 DPST OFF-ON 24VDC - Large Studs: 180A, Small Studs: 20A 1000A / 15sec Index Pin
HDB3-2A-3-C1 DPST OFF-ON 24VDC - Large Studs: 180A, Small Studs: 20A 1000A / 15sec Index Pin, Plastic Encapsulated Key

"Drawings for reference only. The specifications and approvals subject to change without notice"
