Battery Switches

Our Battery Disconnect switches are designed to cut-off electrical power and help protect against electrical fires and theft when equipment is not in use. They provide a reliable shutdown of power during maintenance and prevent parasitic loads from draining the battery during inactivity. These switches are commonly used in industries such as heavy-duty trucks, RVs, construction, mining, emergency vehicles, marine, bus/transit, military and agriculture. We offer plastic and metal body construction with environment protection ranging from splashproof sealing to IP67, ideal for marine or externally mounted uses. Discover also our selector switch options for switching multiple battery banks. One switch simultaneously switches two battery banks while isolating the battery banks from each other.

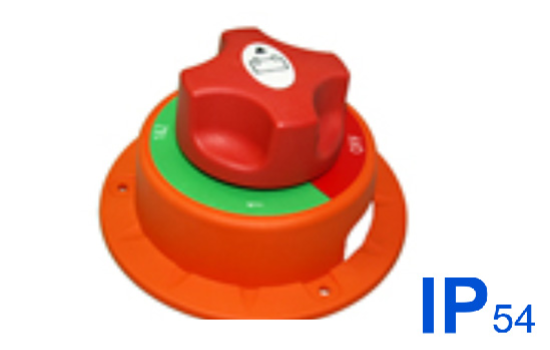

Master Battery Selector

  • Master battery selector switch designed for vehicles that need one battery for engine starting and a second battery to power auxiliary loads, such as lights or appliances. They are often used in boats, trucks, emergency vehicles, and emergency and rescue equipment. These switches let you use both batteries simultaneously, one battery at a time or to completely disconnect both batteries. With a 200A 12-50VDC continuous rating and a 300A intermittent rating.
  • Switch Function : OFF - BAT#1 - BOTH - BAT#2
  • Continuous Rating: 200A 12-50V DC
  • Intermittent Rating : 300A

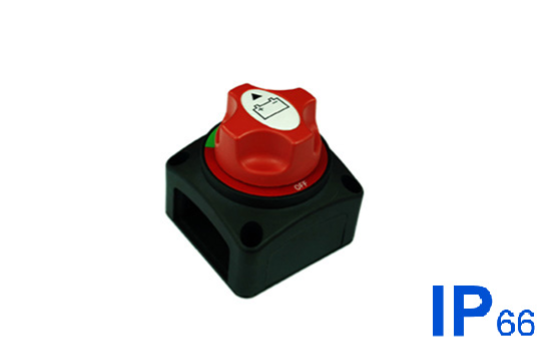

Mini Master Battery Switch

  • Mini master battery switches that are available as either selector or complete disconnect switches. They are rated up to IP66 for water and dust protection and are ignition protected with a flammability rating of UL 94 (flame class 94V-0). These switches are ideal for marine applications and for use in vehicles, including trucks, RVs and police cars.
  • Switch Function : OFF - ON, OFF - BAT#1 - BOTH - BAT#2
  • Continuous Rating: 300A 24-48V DC, 100A 12-50V DC
  • Intermittent Rating : 700A for 10secs, 300A

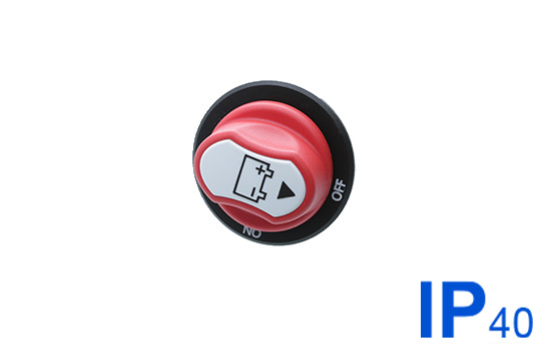

Panel Mount Battery Switch

  • Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. Their compact design and the different continuous rating options make these switches versatile and perfect for a wide variety of uses. M4 to M10 studs are available to meet your varied mounting needs. With intermittent ratings up to 1000A.
  • Switch Function : OFF - ON
  • Continuous Rating: 50A 50V DC, 100A 32V DC, 200A 32V DC
  • Intermittent Rating : 75A, 150A, 300A

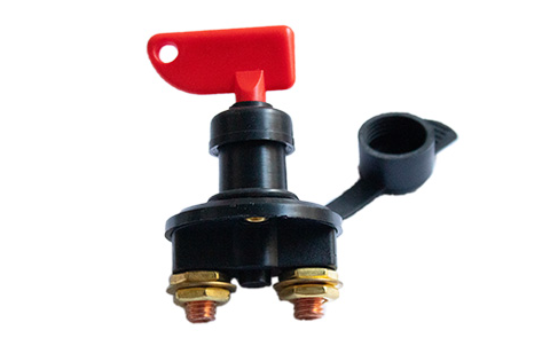

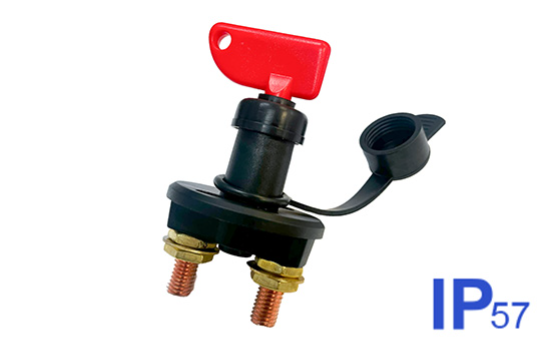

Battery Switch with Removable Handle

  • Battery disconnect switch used as a battery isolator in marine, transportation and automotive applications. The switch's handle is detachable, allowing it to be easily removed to deter tampering. Sturdy M10 studs allow for secure mounting. With a 300A 12VDC continuous rating and an intermittent rating of 800A.
  • Switch Function : OFF - ON
  • Continuous Rating: 300A 12V DC
  • Intermittent Rating : 800A

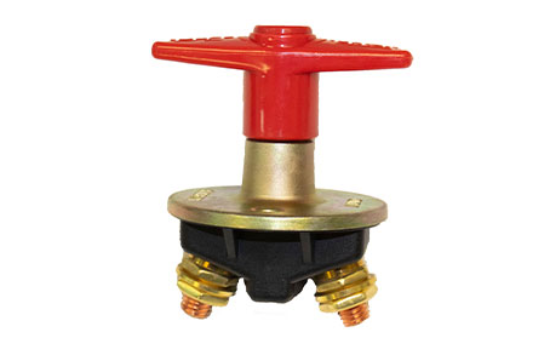

Battery Switch with Fixed Handle

  • This battery disconnect switch is used as a battery isolator in marine, transportation and automotive applications. The switch's bright red T-handle is fixed, highly visible and easily utilized in cases of emergency use. With a 300A 12VDC continuous rating and an intermittent rating of 800A.
  • Switch Function : OFF - ON
  • Continuous Rating: 300A 12V DC
  • Intermittent Rating : 800A

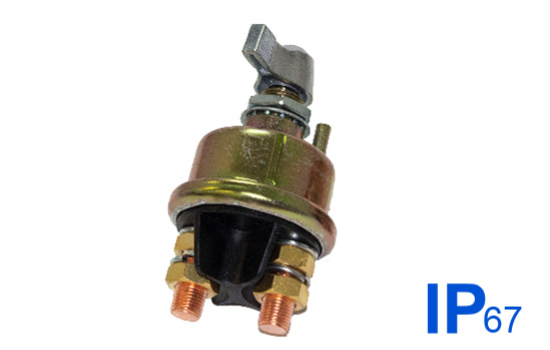

HDB2 Series

  • High Current battery disconnect switch that boasts a 300A continuous rating. The heavy-duty steel construction (IP67), sealed with O-rings at base and mounting stem, and with case and terminal insulator makes the switch an ideal option for off-road and wet environment applications or externally mounted switches where spray or splash is a frequent concern. Indexing pin aligns the switch with the mounting panel and prevents rotation. Optional lock-out feature prevents battery drain and is an ideal safety feature to prevent accidental activation during vehicle maintenance. Mounting Stem: 3/4” - 16 Thread with hex nut and lock washer. Fits Panel up to 1/4” thick.
  • Switch Function : SPST OFF-ON, DPST OFF-ON
  • Continuous Rating: 24VDC 300A, 24VDC - Large Studs: 300A, Small Studs: 20A
  • Intermittent Rating : 2000A / 5sec

HDB3 Series

  • Designed for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem. This weatherproof battery disconnect keeps out dust and moisture and is perfect for vehicles that have switches mounted in the cab or in a box and require up to 180A continuous rating. Available with lever or encapsulated removable keys that protect the vehicle from being stolen. Indexing pin option offered to align switch and prevent rotation. Mounting Stem: 3/4” - 16 Thread with hex nut and lock washer. Fits Panel up to 1/4” thick.
  • Switch Function : SPST OFF-ON, DPST OFF-ON
  • Continuous Rating: 24VDC 180A, 24VDC - Large Studs: 180A, Small Studs: 20A
  • Intermittent Rating : 1000A / 15sec

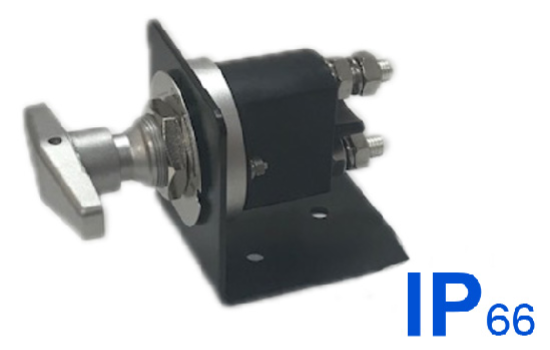

HDB6 Series

  • Robust high-amp battery disconnect switch with an easy-grip T-handle that was durably designed to withstand harsh environments and adverse conditions. It has vibration and shock resistance to accommodate heavy duty applications and is IP66 rated for water and dust protection. With a 500/300A continuous rating (12/24V) and an intermittent rating of 2000A for 5 seconds.
  • Switch Function : OFF - ON
  • Continuous Rating: 500A 12VDC, 300A 24VDC
  • Intermittent Rating : 2000A for 5secs
