PC Series
Contact your Switch Components sales representative at sales@switchcomp.com for more illumination and circuit options. Custom colors are also available.

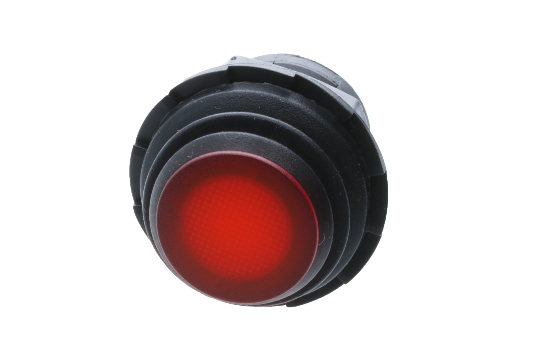

![PC-1B-DC-1-RL PUSH BUTTON(1) PC Push Button Switch Series is designed with a round actuator and body and an IP65 rated splash proof rubber boot that ensures protection against water and moisture (IP 65). Find PC Series available in either a momentary or latching actuation](https://www.switchcomp.com/products/subseries/11/1697749432.png)
![PC-1B-DC-1-RL PUSH BUTTON(2) PC Push Button Switch Series is designed with a round actuator and body and an IP65 rated splash proof rubber boot that ensures protection against water and moisture (IP 65). Find PC Series available in either a momentary or latching actuation and with re](https://www.switchcomp.com/products/subseries/11/1555448691.png)
![PC-1B-DC-1-RL PUSH BUTTON(1) PC Push Button Switch Series is designed with a round actuator and body and an IP65 rated splash proof rubber boot that ensures protection against water and moisture (IP 65). Find PC Series available in either a momentary or latching actuation](https://www.switchcomp.com/products/subseries/11/1697749432.png)
![PC-1B-DC-1-RL PUSH BUTTON(2) PC Push Button Switch Series is designed with a round actuator and body and an IP65 rated splash proof rubber boot that ensures protection against water and moisture (IP 65). Find PC Series available in either a momentary or latching actuation and with re](https://www.switchcomp.com/products/subseries/11/1555448691.png)
![PC_360view](https://www.switchcomp.com/images/360-Icon.jpg)
Electrical Rating |
10A 14VDC |
Circuitry |
SPST |
Terminal |
Quick Connect - 0.250" |
Position |
OFF-(ON),OFF-ON |
Actuator |
Illuminated - Red LED |
Certificates |
![]() |
Part Name | Circuitry | Rating | Action | Terminal | Actuator |
---|---|---|---|---|---|
PC-1A-DC-1-RL | 3P SPST | 10A 14VDC | OFF-ON | Quick Connect - 0.250" | Illuminated - Red LED |
PC-1B-DC-1-RL | 3P SPST | 10A 14VDC | OFF-(ON) | Quick Connect - 0.250" | Illuminated - Red LED |
"Drawings for reference only. The specifications and approvals subject to change without notice"
