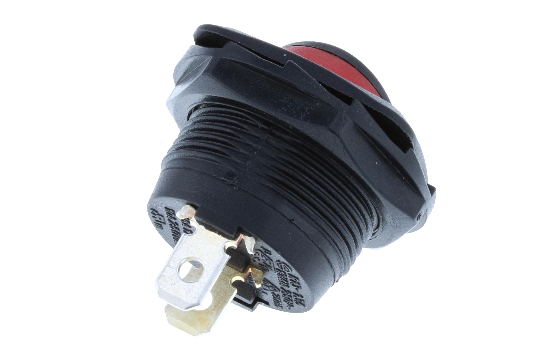

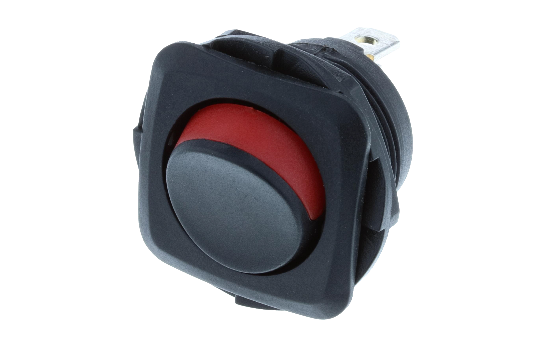

RB1-1A-DC-2-R
Switch Type |
Rocker Switch |
Rating |
20A 14VDC, 16A 125VAC 10A 250VAC, 16(4)A 125/250VAC |
Circuitry |
2P SPST |
Position |
OFF-ON |
Terminal |
Quick Connect - 0.187" |
Actuator |
Black/Red, Nylon #66 |
Cut Out |
ø20.2 |
Depth |
6 mm max |
Technical Diagram |
RB1-1A-DC-2-R |
| Property | Value |
|---|---|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | -25°C~85°C |
| Property | Value |
|---|---|
| Frame / Housing | Black, Nylon #66 +33%GF |
| Terminals / Contacts | Silver plated, Copper alloy |
| Actuator | Black/Red, Nylon #66 |
