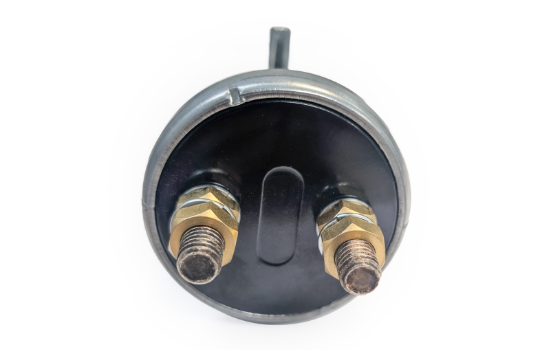

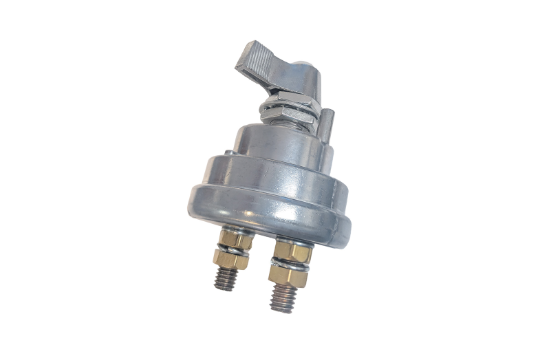

HDB3-1A-3-A1

esigned for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem_0

esigned for challenging work environments and heavy work applications where durability is the main concern. Manufactured using rugged diecast zinc that provides superior corrosion resistance, and with weather resistant O-rings at base and mounting stem. 2_1

Switch Function	OFF - ON
Continuous Rating	180A 24VDC
Intermittent Rating	1000A / 15sec
Cranking Rating
Features	Index Pin
Terminal	3/8"-16 studs
Mounting Dimensions	3/4
Notes	Does not disconnect alternator or generator field circuit. On vehicles equipped with alternators, engine must be shut off to avoid potential damage to alternator diodes
Technical Diagram	HDB3-1A-3-A1

Electrical Specifications
Material Specifications

Property	Value
Contact Resistance	-
Insulation resistance
Dielectric strength
Operation Temperature

Property	Value
Frame / Housing
Cover / Bottom	-
Terminals / Contacts	3/8"-16 studs
Actuator
