SA Series
Engine starter button switch with LED illuminated button. Find the SA series available in three different colors (Red, Green and Blue) and with either ENGINE START printed text or blank face actuators. Supplied with a rear nut for easy dash panel mounting





Electrical Rating |
50A 12V DC |
Circuitry |
SPST |
Terminal |
SC M4 |
Position |
OFF-(ON) |
Actuator |
LED-d Green w/ Legend LED-d Red w/ Legend LED-d Blue w/ Legend LED-d Green w/o Legend LED-d Red w/o Legend LED-d Blue w/o Legend |
Part Name | Circuitry | Rating | Action | Terminal | Actuator |
---|---|---|---|---|---|

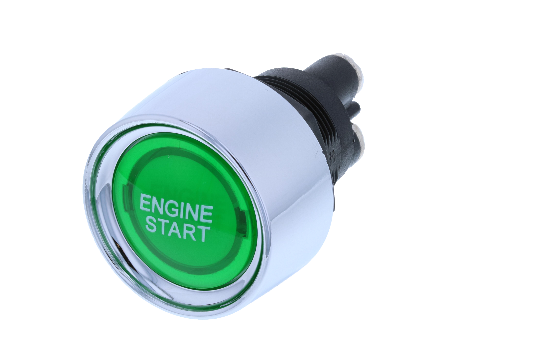

SA-1B-DC-3-GL-P | 3P SPST | 50A 12V DC | OFF-(ON) | SC M4 | LED-d Green w/ Legend |

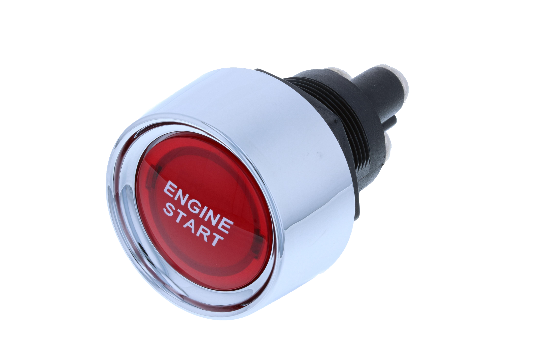

SA-1B-DC-3-RL-P | 3P SPST | 50A 12V DC | OFF-(ON) | SC M4 | LED-d Red w/ Legend |
SA-1B-DC-3-UL-P | 3P SPST | 50A 12V DC | OFF-(ON) | SC M4 | LED-d Blue w/ Legend |
SA-1B-DC-3-GL | 3P SPST | 50A 12V DC | OFF-(ON) | SC M4 | LED-d Green w/o Legend |
SA-1B-DC-3-RL | 3P SPST | 50A 12V DC | OFF-(ON) | SC M4 | LED-d Red w/o Legend |
SA-1B-DC-3-UL | 3P SPST | 50A 12V DC | OFF-(ON) | SC M4 | LED-d Blue w/o Legend |
"Drawings for reference only. The specifications and approvals subject to change without notice"
