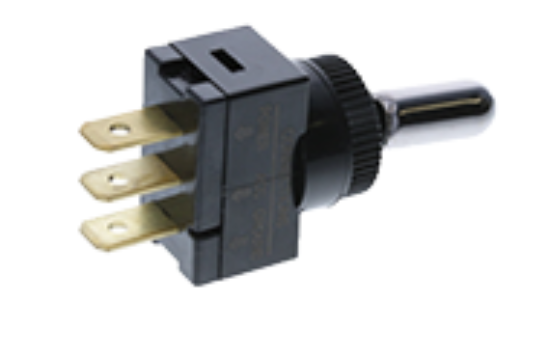

TE3-1A-DC-1-AL

Switch Components offers a wide variety of nylon and metal heavy-duty Toggle Switches which are designed to fulfil the needs of today's automotive, marine and industrial applications along with a wide spectrum of general or custom electrical applications._0

Wedge and duckbill toggles manufactured from a polycarbonate material that ensures protection against water and moisture, ideal for marine applications. TE2 series has a short metal lever available with LED o illumination in four different colors._1

Switch Type	Toggle Switch
Rating	20A 12VDC
Circuitry	3P SPST
Position	OFF-ON
Terminal	Quick Connect - 0.250"
Actuator	Black, Nylon #66 +33%GF
Cut Out	ø12.2
Depth	2 mm max
Technical Diagram	TE3-1A-DC-1-AL

Electrical Specifications
Material Specifications

Property	Value
Contact resistance	50m ohm Max
Insulation resistance	DC 500V 100M ohm Min
Dielectric strength	AC 1500V 1 minute
Operation Temperature	-25°C ~ 85°C

Property	Value
Frame / Housing	Black, PC
Bottom	Black, PBT
Terminals / Contacts	Brass alloy
LED	Amber
Actuator	Black, Nylon #66 +33%GF
