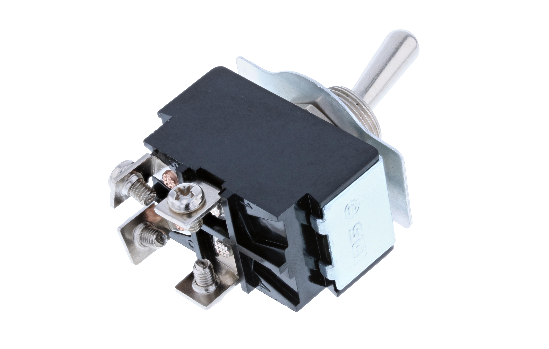

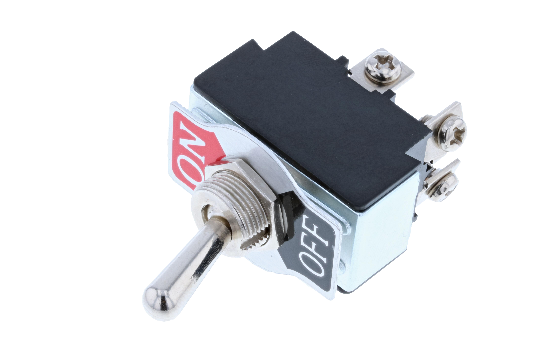

TB2-2A-DC-4
Switch Type |
Toggle Switch |
Rating |
20A 12VDC 10A 24VDC |
Circuitry |
4P DPST |
Position |
OFF-ON |
Terminal |
M3 Screw |
Actuator |
|
Cut Out |
ø12.2 |
Depth |
6 mm max |
Technical Diagram |
TB2-2A-DC-4 |
| Property | Value |
|---|---|
| Contact resistance | 50m ohm Max |
| Insulation resistance | DC 500V 100M ohm Min |
| Dielectric strength | AC 1500V 1 minute |
| Operation Temperature | 0°C ~ 55°C |
| Property | Value |
|---|---|
| Hex Nut | 2 hex nut assy, 1 ON/ON face plate assy |
