SB Series

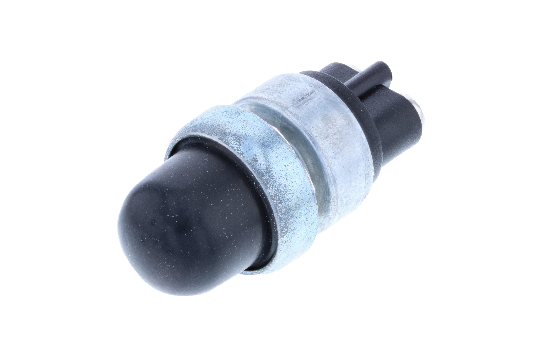

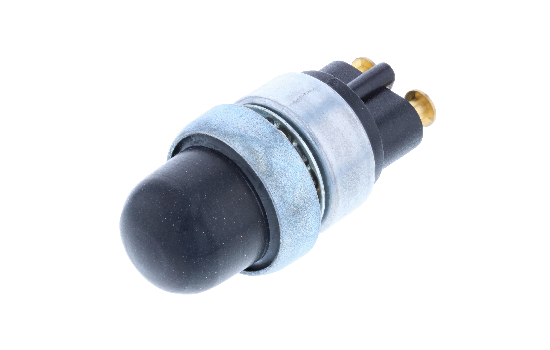

Switch Components Inc.’s SB starter switches are ideal for high amperage circuits that can be exposed to harsh environments as it repels oil, water and other liquids. It is designed to act as starter, signal and momentary control of DC circuits.

SB_series1
SB_series3
SB_series5
SB_series7
SB_360view

Electrical Rating

60A 12V DC

Circuitry

SPST

Terminal

SC M4,PIN,STUD

Position

OFF-(ON)

Actuator

Black boot

Red boot

Metal Collar

Metal Nut

Part Name Circuitry Rating Action Terminal Actuator
SB-1B-DC-3-B 2P SPST 60A 12V DC OFF-(ON) SC M4 Black boot
SB-1B-DC-3-R 2P SPST 60A 12V DC OFF-(ON) SC M4 Red boot
SB-1B-DC-3-C 2P SPST 60A 12V DC OFF-(ON) SC M4 Metal Collar
SB-1B-DC-3-N 2P SPST 60A 12V DC OFF-(ON) SC M4 Metal Nut
SB-1B-DC-8-B 2P SPST 60A 12V DC OFF-(ON) PIN Black boot
SB-1B-DC-8-R 2P SPST 60A 12V DC OFF-(ON) PIN Red boot
SB-1B-DC-10-B 2P SPST 60A 12V DC OFF-(ON) STUD Black boot
SB-1B-DC-10-R 2P SPST 60A 12V DC OFF-(ON) STUD Red boot

"Drawings for reference only. The specifications and approvals subject to change without notice"
