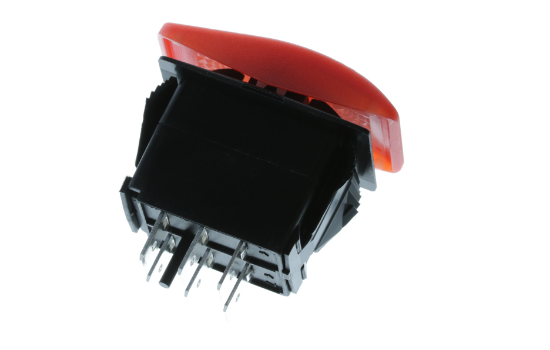

SRD1-2A-DC-1-BGN

At Switch Components, we offer a full field-proven line of rockers designed for your automotive, marine, industrial, and general electric use applications. From round to square faces, and sealed actuators, you can choose between a huge range of single pol_0

SRD1 actuator can be illuminated with up to two square shaped lenses available in four different colors. They are offered in a wide range of Single Pole and Double Pole momentary and latching circuits. Well know for its reliability and ergonomic design._1

Switch Type	Rocker Switch
Rating	21A 14VDC
Circuitry	5P DPST
Position	OFF-ON
Terminal	Quick Connect - 0.250"
Actuator	Black, Nylon #66
Cut Out	36.8*21.2
Depth	0.75~3.0 mm max
Technical Diagram	SRD1-2A-DC-1-BGN

Electrical Specifications
Material Specifications

Property	Value
Certification
Contact resistance	-
Insulation resistance	-
Dielectric strength	-
Operation Temperature	-

Property	Value
Waterproof IP	IP56
Frame / Housing	Black, Nylon #66
Terminals / Contacts	Terminals 2, 3, 5, 6: Silver plated copper. Terminal 7: Brass
LED	Green
Actuator	Black, Nylon #66
Lens	Lens 1: PC, White diffused. Lens 2: Green
