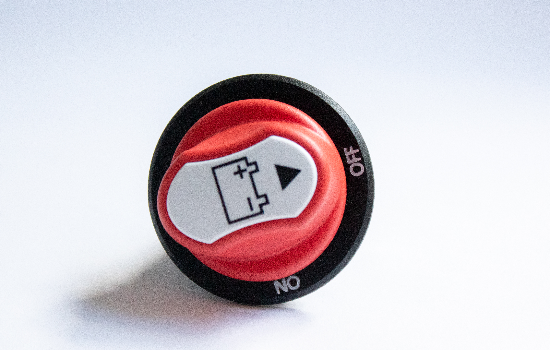

BC2-DC

Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. Compact design and the different continuous rating options._0

Switch Function	OFF - ON
Continuous Rating	100A 32V DC
Intermittent Rating	150A
Cranking Rating	500A for 5secs
Features	IP56
Terminal	M6-1.0 screws
Mounting Dimensions	⌀29.0mm
Notes
Technical Diagram	BC2-DC

Electrical Specifications
Material Specifications

Property	Value
Contact Resistance	50m ohm Max
Insulation resistance	DC 500V 1M ohm Min.
Dielectric strength	DC 2000 / AC 1000V 1 minute
Operation Temperature	-30°C ~ 60°C

Property	Value
Frame / Housing	Nylon with 33% Fiberglass
Cover / Bottom	PBT with 15% Fiberglass
Terminals / Contacts	M6-1.0 screws
Actuator	PBT with 15% Fiberglass
