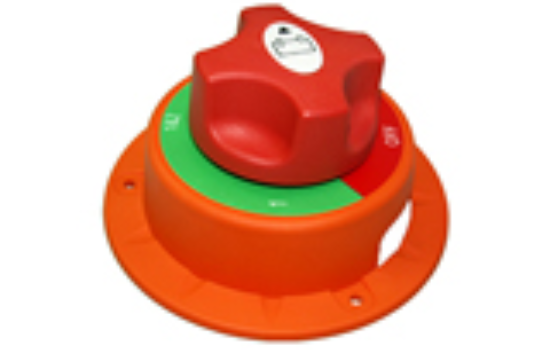

ba1

Switch Function

OFF-1-1&2-2

Continuous Rating

200A 6-32VDC

Intermittent Rating

300A

Cranking Rating

100A

Features

Terminal

Screw

Mounting Dimensions

Notes

Technical Diagram

 ba1
Property Value
Contact Resistance 50milliohms
Insulation resistance DC 1000V 100MΩ Min
Dielectric strength DC 2000V 1 minute, AC 1000V minute
Operation Temperature
Property Value
Frame / Housing PBT (UL frame 94V-0), Orange
Cover / Bottom
Terminals / Contacts Screw
Actuator PBT (UL frame: 94V-0), Red
