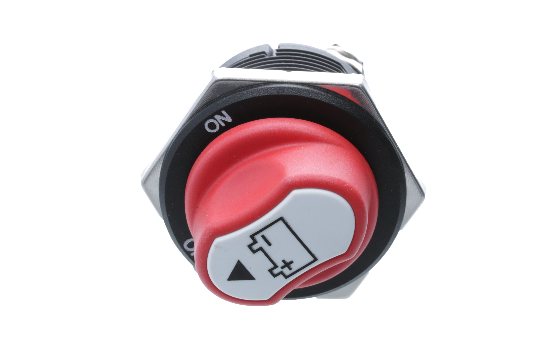

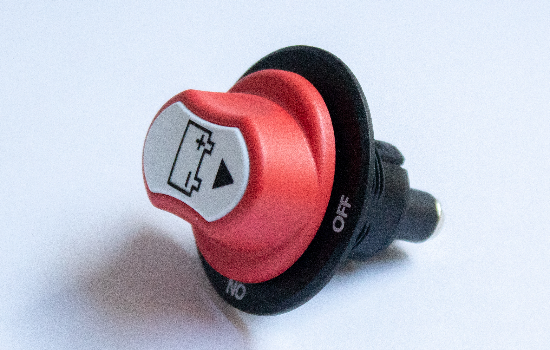

Panel Mount Battery Switch - BC Series

Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. M4 to M10 studs are available to meet your varied mounting needs.

Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. Their compact design and the different continuous rating options make these switches versatile and perfect for
Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. Their compact design and the different continuous rating options make these switches versatile and perfect for
Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. Their compact design and the different continuous rating options make these switches versatile and perfect for
Panel mounted, ignition protected battery switches with ON-OFF actuation, allowing for a safe and reliable shutdown of power during maintenance. Their compact design and the different continuous rating options make these switches versatile and perfect for

Switch Function

OFF - ON

Continuous Rating

50A 50V DC, 100A 32V DC, 200A 32V DC

Intermittent Rating

75A, 150A, 300A

Cranking Rating

300A for 5secs, 500A for 5secs, 1000A for 5secs

Features

-, IP56
Part Name Switch Function Continuous Rating Intermittent Rating Features
BC1-DC OFF - ON 50A 50V DC 75A -
BC2-DC OFF - ON 100A 32V DC 150A IP56
BC3-DC OFF - ON 200A 32V DC 300A IP56

"Drawings for reference only. The specifications and approvals subject to change without notice"
