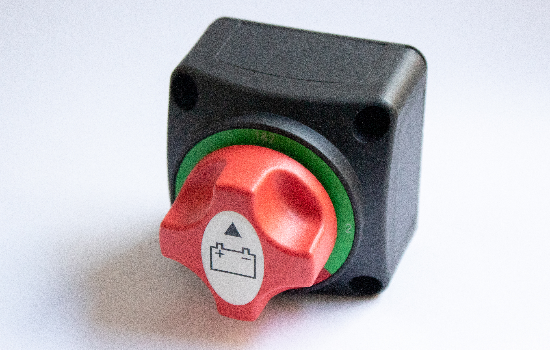

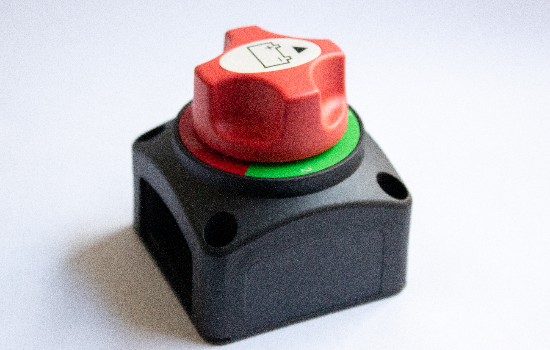

Mini Master Battery Switch Series

Mini master battery switches that are available as either selector or complete disconnect switches. They are IP66 rated for water and dust protection and are ignition protected with a flammability rating of UL 94 (flame class 94V-0).

Mini master battery switches that are available as either selector or complete disconnect switches. They are IP66 rated for water and dust protection and are ignition protected with a flammability rating of UL 94 (flame class 94V-0). These switches are id
Mini master battery switches that are available as either selector or complete disconnect switches. They are IP66 rated for water and dust protection and are ignition protected with a flammability rating of UL 94 (flame class 94V-0). These switches are id
Mini master battery switches that are available as either selector or complete disconnect switches. They are IP66 rated for water and dust protection and are ignition protected with a flammability rating of UL 94 (flame class 94V-0). These switches are id
Mini master battery switches that are available as either selector or complete disconnect switches. They are IP66 rated for water and dust protection and are ignition protected with a flammability rating of UL 94 (flame class 94V-0). These switches are id

Switch Function

OFF - ON, OFF - BAT#1 - BOTH - BAT#2

Continuous Rating

300A 24-48V DC, 100A 12-50V DC

Intermittent Rating

700A for 10secs, 300A

Cranking Rating

1000A for 5secs

Features

IP66, IP68 (operating surface)
Part Name Switch Function Continuous Rating Intermittent Rating Features
BE1 OFF - ON 300A 24-48V DC 700A for 10secs IP66
BB2-DC OFF - BAT#1 - BOTH - BAT#2 100A 12-50V DC 300A IP68 (operating surface)

"Drawings for reference only. The specifications and approvals subject to change without notice"
