RG3 Series

RG3 Series midsize rockers’ actuator is design with a rectangular bezel. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.

RG3 Series midsize rockers’ actuator is design with a rectangular bezel. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG3 Series midsize rockers’ actuator is design with a rectangular bezel. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG3 Series midsize rockers’ actuator is design with a rectangular bezel. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG3 Series midsize rockers’ actuator is design with a rectangular bezel. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.

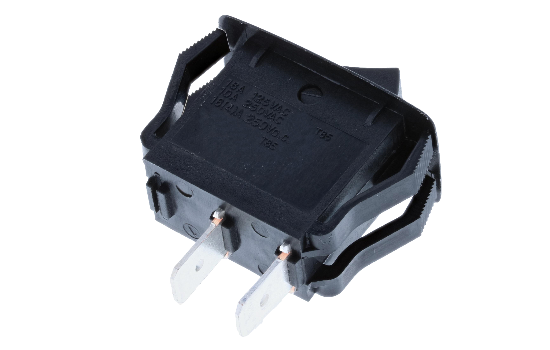

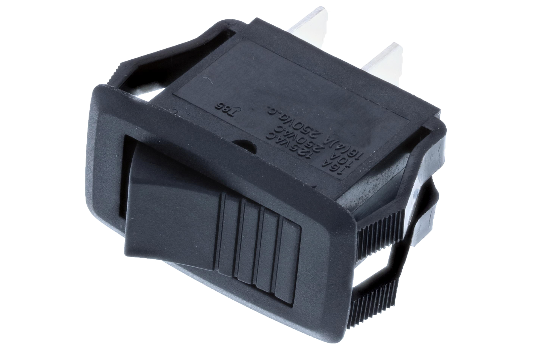

RG3_360view

Electrical Rating

20A 12V DC, 10A 24V DC,20A 125V AC 1/3HP, 16A 250V AC 1/2HP

Circuitry

SPST

Terminal

250" SQ

Position

OFF-ON

Actuator

Black A

Certificates

Part Name Circuitry Rating Action Terminal Actuator
RG3-1A-DC-1-B 2P SPST 20A 12V DC, 10A 24V DC OFF-ON 250" SQ Black A
RG3-1A-AC-1-B 2P SPST 20A 125V AC 1/3HP, 16A 250V AC 1/2HP OFF-ON 250" SQ Black A

"Drawings for reference only. The specifications and approvals subject to change without notice"
