RG2 Series

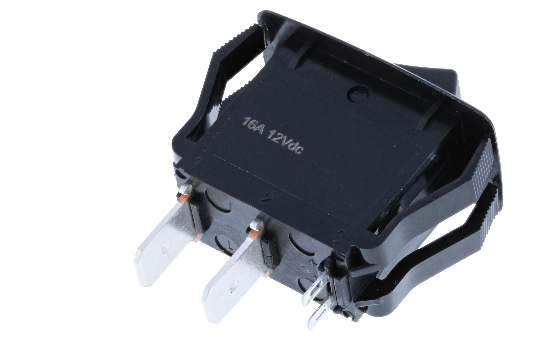

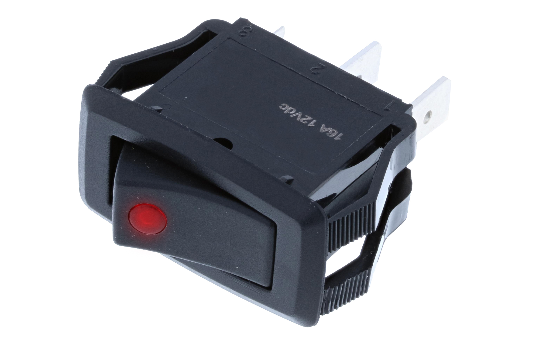

RG2 midsize rockers’ actuator is illuminated by a dot LED. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.

RG2 midsize rockers’ actuator is illuminated by a dot LED. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG2 midsize rockers’ actuator is illuminated by a dot LED. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG2 midsize rockers’ actuator is illuminated by a dot LED. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG2 midsize rockers’ actuator is illuminated by a dot LED. It’s snap-in design makes installation easy into a majority of standard panel cutouts. Recommended for home appliances, computer equipment, automotive and industrial controls uses.

Electrical Rating

16A 12V DC

Circuitry

SPST

Terminal

250" SQ

Position

OFF-ON

Actuator

Illuminated Point Indicator LED-i Amber

Illuminated Point Indicator LED-i Green

Illuminated Point Indicator LED-i Red

Illuminated Point Indicator LED-i Blue

Certificates

Part Name Circuitry Rating Action Terminal Actuator
RG2-1A-DC-1-AL 4P SPST 16A 12V DC OFF-ON 250" SQ Illuminated Point Indicator LED-i Amber
RG2-1A-DC-1-GL 4P SPST 16A 12V DC OFF-ON 250" SQ Illuminated Point Indicator LED-i Green
RG2-1A-DC-1-RL 4P SPST 16A 12V DC OFF-ON 250" SQ Illuminated Point Indicator LED-i Red
RG2-1A-DC-1-UL 4P SPST 16A 12V DC OFF-ON 250" SQ Illuminated Point Indicator LED-i Blue

"Drawings for reference only. The specifications and approvals subject to change without notice"
