RG1 Series

RG1 Series midsize rockers are offered non-illuminated or illuminated and with a two-color molded actuator and bezel (Black and Red) option. Recommended for home appliances, computer equipment, automotive and industrial controls uses.

RG1 Series midsize rockers are offered non-illuminated or illuminated and with a two-color molded actuator and bezel (Black and Red) option. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG1 Series midsize rockers are offered non-illuminated or illuminated and with a two-color molded actuator and bezel (Black and Red) option. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG1 Series midsize rockers are offered non-illuminated or illuminated and with a two-color molded actuator and bezel (Black and Red) option. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG1 Series midsize rockers are offered non-illuminated or illuminated and with a two-color molded actuator and bezel (Black and Red) option. Recommended for home appliances, computer equipment, automotive and industrial controls uses.
RG1_360view

Electrical Rating

20A 12V DC, 10A 24V DC,16A 12V DC,20A 125V AC 1/3HP, 16A 250V AC 1/2HP

Circuitry

SPST,SPDT

Terminal

250" SQ

Position

OFF-ON,OFF-(ON),ON-ON,ON-OFF-ON,(ON)-OFF-(ON)

Actuator

Black

Black&Red w/ Legend Point

Fully Illuminated LED-d Amber

Fully Illuminated LED-d Green

Fully Illuminated LED-d Red

Fully Illuminated LED-d Blue

Certificates

Part Name Circuitry Rating Action Terminal Actuator
RG1-1A-DC-1-B 2P SPST 20A 12V DC, 10A 24V DC OFF-ON 250" SQ Black

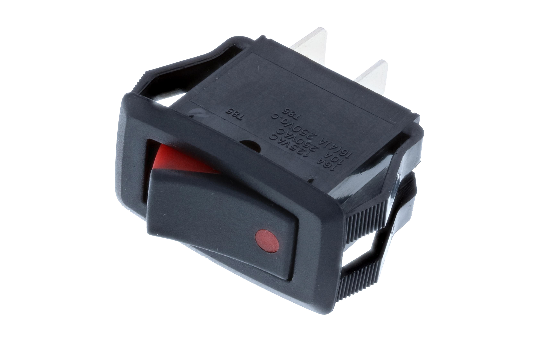

RG1-1A-DC-1-R-3 2P SPST 20A 12V DC, 10A 24V DC OFF-ON 250" SQ Black&Red w/ Legend Point
RG1-1B-DC-1-B 2P SPST 20A 12V DC, 10A 24V DC OFF-(ON) 250" SQ Black
RG1-1D-DC-1-B 3P SPDT 20A 12V DC, 10A 24V DC ON-ON 250" SQ Black
RG1-1F-DC-1-B 3P SPDT 20A 12V DC, 10A 24V DC ON-OFF-ON 250" SQ Black
RG1-1G-DC-1-B 3P SPDT 20A 12V DC, 10A 24V DC (ON)-OFF-(ON) 250" SQ Black

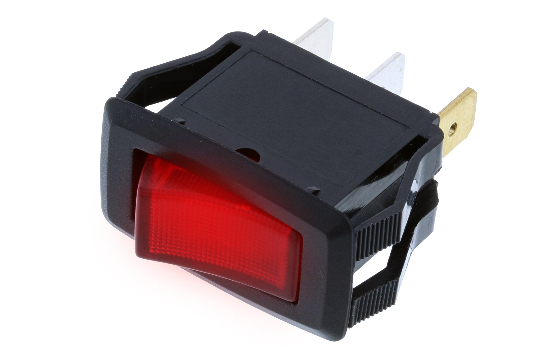

RG1-1A-DC-1-AL 3P SPST 16A 12V DC OFF-ON 250" SQ Fully Illuminated LED-d Amber
RG1-1A-DC-1-GL 3P SPST 16A 12V DC OFF-ON 250" SQ Fully Illuminated LED-d Green
RG1-1A-DC-1-RL 3P SPST 16A 12V DC OFF-ON 250" SQ Fully Illuminated LED-d Red
RG1-1A-DC-1-UL 3P SPST 16A 12V DC OFF-ON 250" SQ Fully Illuminated LED-d Blue
RG1-1A-AC-1-B 2P SPST 20A 125V AC 1/3HP, 16A 250V AC 1/2HP OFF-ON 250" SQ Black
RG1-1A-AC-1-R-3 2P SPST 20A 125V AC 1/3HP, 16A 250V AC 1/2HP OFF-ON 250" SQ Black&Red w/ Legend Point
RG1-1B-AC-1-B 2P SPST 20A 125V AC 1/3HP, 16A 250V AC 1/2HP OFF-(ON) 250" SQ Black
RG1-1D-AC-1-B 3P SPDT 20A 125V AC 1/3HP, 16A 250V AC 1/2HP ON-ON 250" SQ Black
RG1-1F-AC-1-B 3P SPDT 20A 125V AC 1/3HP, 16A 250V AC 1/2HP ON-OFF-ON 250" SQ Black
RG1-1G-AC-1-B 3P SPDT 20A 125V AC 1/3HP, 16A 250V AC 1/2HP (ON)-OFF-(ON) 250" SQ Black

"Drawings for reference only. The specifications and approvals subject to change without notice"
