RB3 Series

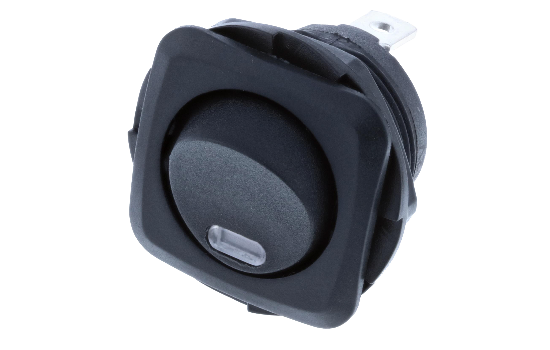

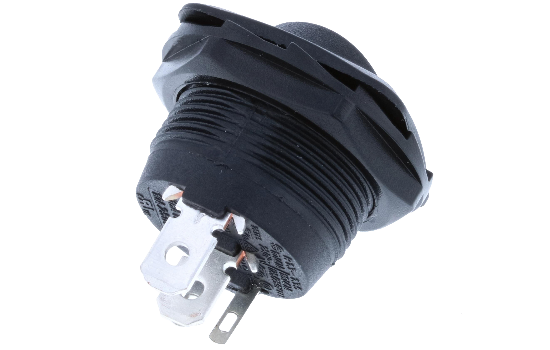

Designed as a round hole rocker with a square face illuminated by a LED offered in four different colors. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial applications.

Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
RB3_360view

Electrical Rating

20A 14V DC

Circuitry

SPST

Terminal

187" SQ

Position

OFF-ON

Actuator

Illuminated Rectangle Indicator LED-i Amber

Illuminated Rectangle Indicator LED-i Green

Illuminated Rectangle Indicator LED-i Red

Illuminated Rectangle Indicator LED-i Blue

Part Name Circuitry Rating Action Terminal Actuator
RB3-1A-DC-2-AL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Amber
RB3-1A-DC-2-GL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Green
RB3-1A-DC-2-RL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Red
RB3-1A-DC-2-UL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Blue

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
