RB2 Series

RB2 is designed as a round hole rocker with a square face illuminated by a dot LED offered in four different colors. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial applications.

Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
RB2_360view

Electrical Rating

20A 14V DC

Circuitry

SPST

Terminal

187" SQ

Position

OFF-ON

Actuator

Illuminated Point Indicator LED-d Amber w/ Lens

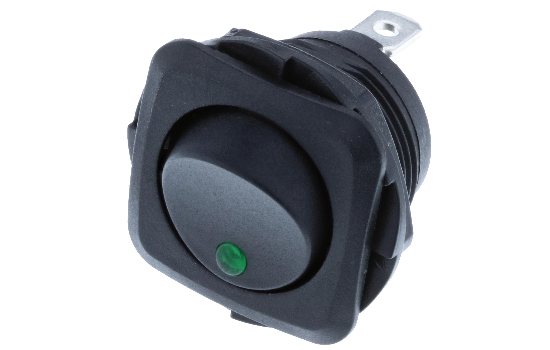

Illuminated Point Indicator LED-d Green w/ Lens

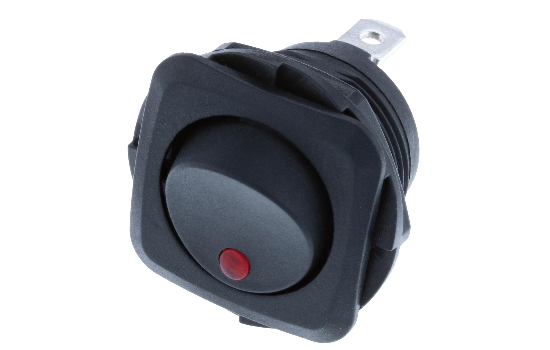

Illuminated Point Indicator LED-d Red w/ Lens

Illuminated Point Indicator LED-d Blue w/ Lens

Part Name Circuitry Rating Action Terminal Actuator
RB2-1A-DC-2-AL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Amber w/ Lens
RB2-1A-DC-2-GL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Green w/ Lens
RB2-1A-DC-2-RL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Red w/ Lens
RB2-1A-DC-2-UL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Blue w/ Lens

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
