RB1 Series

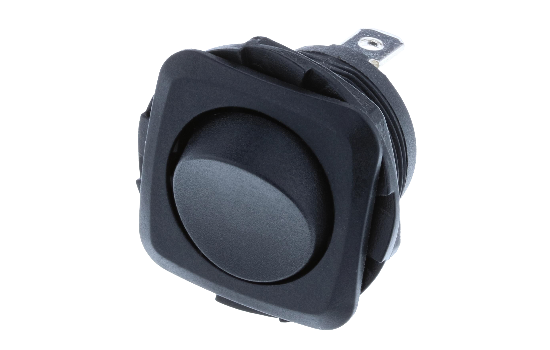

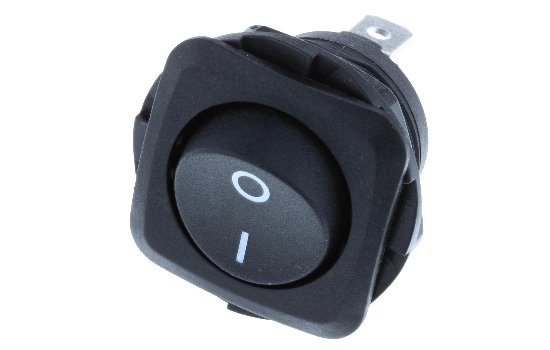

Designed as a round hole rocker with a square face offered in black and with different legend options available. Designed with dust resistant black nylon housing with back-up nut design. Great for automotive, marine and industrial applications.

Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
RB1new8
Switch Components Inc’s RB Series are designed as a round hole rocker with a square face that has multiple illuminated options. Designed with dust resistant black nylon housing with back-up nut design. It is great for automotive, marine and industrial app
RB1new8
RB1_360view

Electrical Rating

20A 14V DC, 10A 28V DC

Circuitry

SPST,SPDT

Terminal

187" SQ

Position

OFF-ON,OFF-(ON),ON-(OFF),ON-ON,ON-(ON),ON-OFF-ON,(ON)-OFF-(ON),ON-OFF-(ON)

Actuator

Black

Black w/ Legend 0-

Black w/ Legend ON-OFF

Black w/ Legend Point

Black&Red

Black&Red w/ Legend 0-

Part Name Circuitry Rating Action Terminal Actuator
RB1-1A-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black
RB1-1A-DC-2-B-1 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black w/ Legend 0-
RB1-1A-DC-2-B-2 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black w/ Legend ON-OFF
RB1-1A-DC-2-B-3 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black w/ Legend Point
RB1-1A-DC-2-R 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black&Red
RB1-1A-DC-2-R-1 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black&Red w/ Legend 0-
RB1-1B-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC OFF-(ON) 187" SQ Black
RB1-1C-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC ON-(OFF) 187" SQ Black
RB1-1D-DC-2-B 3P SPDT 20A 14V DC, 10A 28V DC ON-ON 187" SQ Black
RB1-1E-DC-2-B 3P SPDT 20A 14V DC, 10A 28V DC ON-(ON) 187" SQ Black
RB1-1F-DC-2-B 3P SPDT 20A 14V DC, 10A 28V DC ON-OFF-ON 187" SQ Black
RB1-1G-DC-2-B 3P SPDT 20A 14V DC, 10A 28V DC (ON)-OFF-(ON) 187" SQ Black
RB1-1H-DC-2-B 3P SPDT 20A 14V DC, 10A 28V DC ON-OFF-(ON) 187" SQ Black

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
