RA5 Series

RA5 Series Round Rockers feature a LED paddle-shaped handle available in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts.

 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA5 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA5 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.

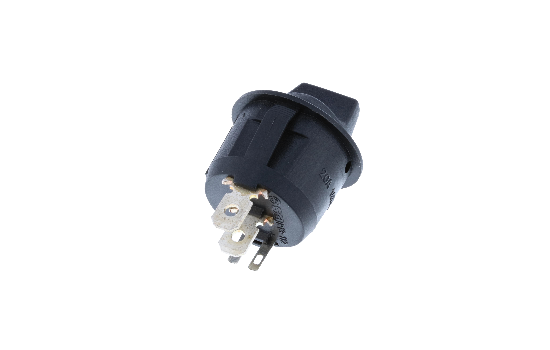

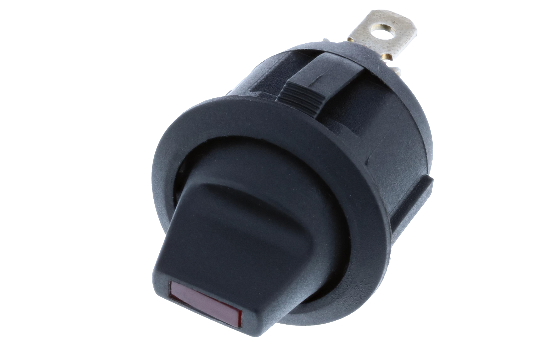

RA5_360view

Electrical Rating

20A 14V DC

Circuitry

SPST

Terminal

187" SQ

Position

OFF-ON

Actuator

LED-i Amber w/ Toggle

LED-i Green w/ Toggle

LED-i Red w/ Toggle

LED-i Blue w/ Toggle

Part Name Circuitry Rating Action Terminal Actuator
RA5-1A-DC-2-AL 4P SPST 20A 14V DC OFF-ON 187" SQ LED-i Amber w/ Toggle
RA5-1A-DC-2-GL 4P SPST 20A 14V DC OFF-ON 187" SQ LED-i Green w/ Toggle
RA5-1A-DC-2-RL 4P SPST 20A 14V DC OFF-ON 187" SQ LED-i Red w/ Toggle
RA5-1A-DC-2-UL 4P SPST 20A 14V DC OFF-ON 187" SQ LED-i Blue w/ Toggle

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
