RA4 Series

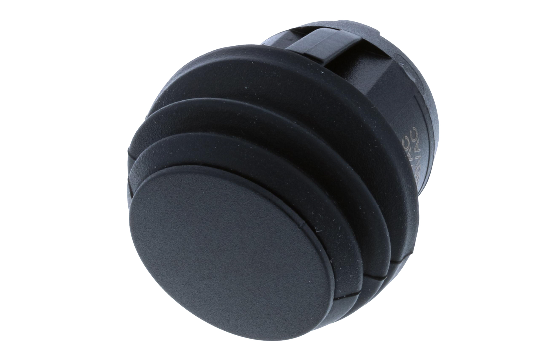

RA4 Series Round Rockers, offered non-illuminated or illuminated, are manufactured with a black silicone waterproof sealing that provides a rating up to IP65. Its snap-in design is compatible with a majority of standard panel cutouts.

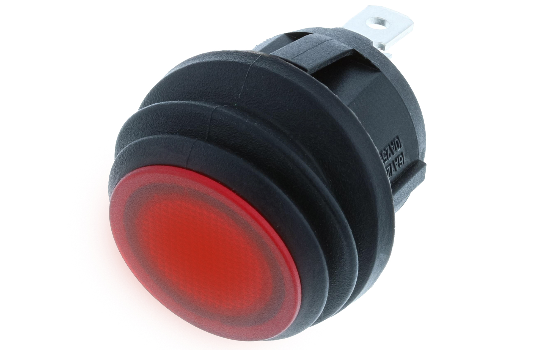

RA4 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA4  Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA4 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA4  Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA4_360view

Electrical Rating

20A 14V DC, 10A 28V DC,20A 14V DC,16A 125V AC, 10A 250V AC

Circuitry

SPST,SPDT,DPST,DPDT

Terminal

187" SQ

Position

OFF-ON,OFF-(ON),ON-(OFF),ON-ON,ON-OFF-ON

Actuator

Black w/ Waterproof

Fully Illuminated LED-d Amber w/ Waterproof

Fully Illuminated LED-d Green w/ Waterproof

Fully Illuminated LED-d Red w/ Waterproof

Fully Illuminated LED-d Blue w/ Waterproof

Certificates

Part Name Circuitry Rating Action Terminal Actuator
RA4-1A-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black w/ Waterproof
RA4-1B-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC OFF-(ON) 187" SQ Black w/ Waterproof
RA4-1C-DC-2-B 2P SPST 20A 14V DC, 10A 28V DC ON-(OFF) 187" SQ Black w/ Waterproof
RA4-1D-DC-2-B 3P SPDT 20A 14V DC, 10A 28V DC ON-ON 187" SQ Black w/ Waterproof
RA4-1F-DC-2-B 3P SPDT 20A 14V DC, 10A 28V DC ON-OFF-ON 187" SQ Black w/ Waterproof
RA4-1A-DC-2-AL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Amber w/ Waterproof
RA4-1A-DC-2-GL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Green w/ Waterproof
RA4-1A-DC-2-RL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Red w/ Waterproof
RA4-1A-DC-2-UL 3P SPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Blue w/ Waterproof
RA4-2A-DC-2-B 4P DPST 20A 14V DC, 10A 28V DC OFF-ON 187" SQ Black w/ Waterproof
RA4-2D-DC-2-B 6P DPDT 20A 14V DC, 10A 28V DC ON-ON 187" SQ Black w/ Waterproof
RA4-2F-DC-2-B 6P DPDT 20A 14V DC, 10A 28V DC ON-OFF-ON 187" SQ Black w/ Waterproof
RA4-2A-DC-2-AL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Amber w/ Waterproof
RA4-2A-DC-2-GL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Green w/ Waterproof
RA4-2A-DC-2-RL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Red w/ Waterproof
RA4-2A-DC-2-UL 4P DPST 20A 14V DC OFF-ON 187" SQ Fully Illuminated LED-d Blue w/ Waterproof
RA4-1A-AC-2-B 2P SPST 16A 125V AC, 10A 250V AC OFF-ON 187" SQ Black w/ Waterproof
RA4-1B-AC-2-B 2P SPST 16A 125V AC, 10A 250V AC OFF-(ON) 187" SQ Black w/ Waterproof
RA4-1C-AC-2-B 2P SPST 16A 125V AC, 10A 250V AC ON-(OFF) 187" SQ Black w/ Waterproof
RA4-1F-AC-2-B 3P SPDT 16A 125V AC, 10A 250V AC ON-OFF-ON 187" SQ Black w/ Waterproof
RA4-2A-AC-2-B 4P DPST 16A 125V AC, 10A 250V AC OFF-ON 187" SQ Black w/ Waterproof
RA4-2D-AC-2-B 6P DPDT 16A 125V AC, 10A 250V AC ON-ON 187" SQ Black w/ Waterproof
RA4-2F-AC-2-B 6P DPDT 16A 125V AC, 10A 250V AC ON-OFF-ON 187" SQ Black w/ Waterproof

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
