RA3 Series

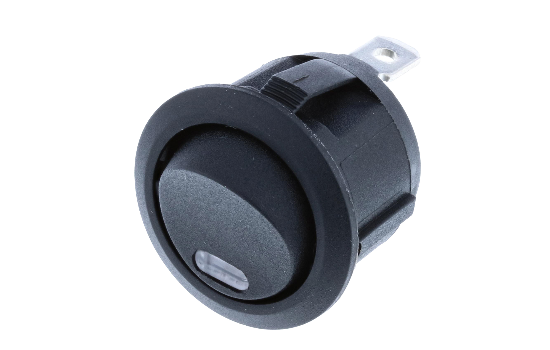

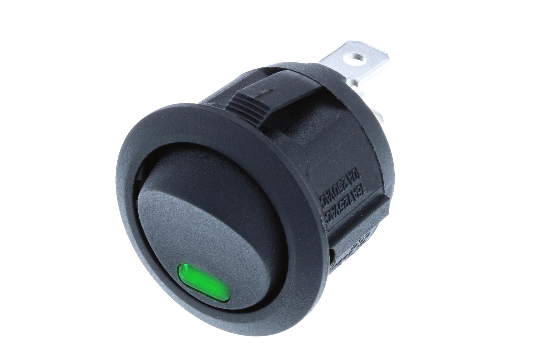

RA3 Round Rockers are illuminated by a LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Designed for different applications including appliances and computers and peripherals.

RA3 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA3 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA3 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA3 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA3_360view

Electrical Rating

20A 14V DC

Circuitry

SPST

Terminal

187" SQ

Position

OFF-ON

Actuator

Illuminated Rectangle Indicator LED-i Amber

Illuminated Rectangle Indicator LED-i Green

Illuminated Rectangle Indicator LED-i Red

Illuminated Rectangle Indicator LED-i Blue

Part Name Circuitry Rating Action Terminal Actuator
RA3-1A-DC-2-AL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Amber
RA3-1A-DC-2-GL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Green
RA3-1A-DC-2-RL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Red
RA3-1A-DC-2-UL 4P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Rectangle Indicator LED-i Blue

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
