RA2 Series

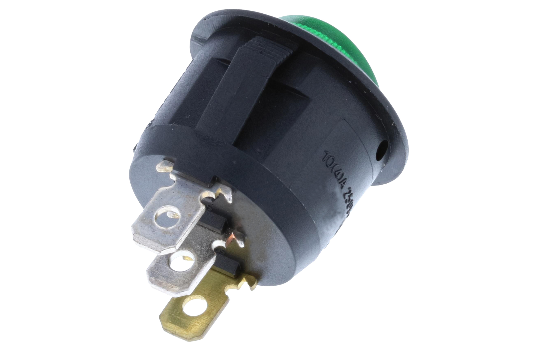

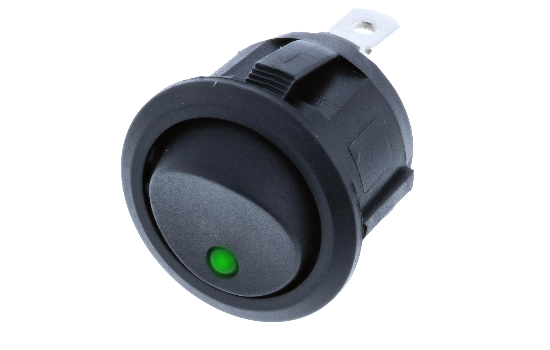

RA2 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.

RA2 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA2 RA2 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA2 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA2 RA2 Round Rockers are illuminated by a dot LED offered in four different colors. Its snap-in design is compatible with a majority of standard panel cutouts. Used in a wide variety of applications including appliances and computers and peripherals.
RA2_360view

Electrical Rating

20A 14V DC

Circuitry

SPST

Terminal

187" SQ

Position

OFF-ON

Actuator

Illuminated Point Indicator LED-d Amber

Illuminated Point Indicator LED-d Green

Illuminated Point Indicator LED-d Red

Illuminated Point Indicator LED-d Blue

Part Name Circuitry Rating Action Terminal Actuator
RA2-1A-DC-2-AL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Amber
RA2-1A-DC-2-GL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Green
RA2-1A-DC-2-RL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Red
RA2-1A-DC-2-UL 3P SPST 20A 14V DC OFF-ON 187" SQ Illuminated Point Indicator LED-d Blue

Suggested Accessories

"Drawings for reference only. The specifications and approvals subject to change without notice"
