RA1 Series

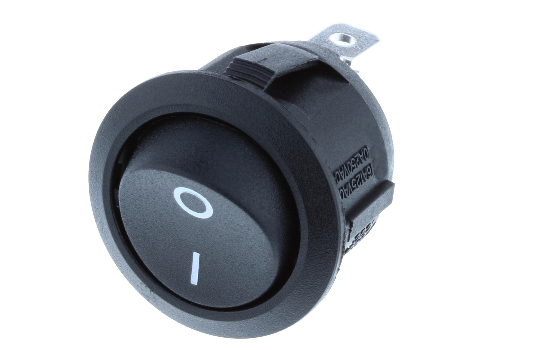

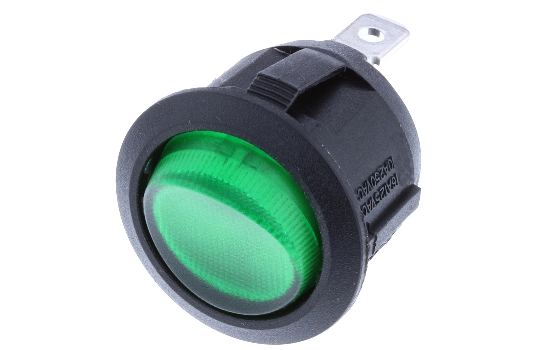

RA1 Series Round Rockers are offered non-illuminated or illuminated. Its snap-in design is compatible with a majority of standard panel cutouts. They are perfect for a wide variety of applications including appliances and computers and peripherals.

At Switch Components, we offer a full field-proven line of rockers designed for your automotive, marine, industrial, and general electric use applications. From round to square faces, and sealed actuators, you can choose between a huge range of single pol

Electrical Rating	16A 125V AC, 10A 250V AC,20A 14V DC,20A 14V DC, 10A 28V DC
Circuitry	SPST,SPDT,DPDT,DPST
Terminal	187" SQ
Position	(ON)-OFF-(ON),OFF-(ON),OFF-ON,ON-(OFF),ON-(ON),ON-OFF-(ON),ON-OFF-ON,ON-ON
Actuator	Black Black w/ Legend -0= Black w/ Legend 0- Black w/ Legend I-II Black w/ Legend ON-OFF Black w/ Legend Point Black&Red Black&Red w/ Legend 0- Fully Illuminated LED-d Amber Fully Illuminated LED-d Blue Fully Illuminated LED-d Green Fully Illuminated LED-d Red White
Certificates

Specifications
Technical Resource

Part Name	Circuitry	Rating	Action	Terminal	Actuator
RA1-1A-DC-2-B	2P SPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black
RA1-1A-DC-2-B-1	2P SPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black w/ Legend 0-
RA1-1A-DC-2-B-2	2P SPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black w/ Legend ON-OFF
RA1-1A-DC-2-B-3	2P SPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black w/ Legend Point
RA1-1A-DC-2-R	2P SPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black&Red
RA1-1A-DC-2-R-1	2P SPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black&Red w/ Legend 0-
RA1-1A-DC-2-H	2P SPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	White
RA1-1B-DC-2-B	2P SPST	20A 14V DC, 10A 28V DC	OFF-(ON)	187" SQ	Black
RA1-1C-DC-2-B	2P SPST	20A 14V DC, 10A 28V DC	ON-(OFF)	187" SQ	Black
RA1-1D-DC-2-B	3P SPDT	20A 14V DC, 10A 28V DC	ON-ON	187" SQ	Black
RA1-1D-DC-2-B-4	3P SPDT	20A 14V DC, 10A 28V DC	ON-ON	187" SQ	Black w/ Legend I-II
RA1-1E-DC-2-B	3P SPDT	20A 14V DC, 10A 28V DC	ON-(ON)	187" SQ	Black
RA1-1F-DC-2-B	3P SPDT	20A 14V DC, 10A 28V DC	ON-OFF-ON	187" SQ	Black
RA1-1F-DC-2-B-5	3P SPDT	20A 14V DC, 10A 28V DC	ON-OFF-ON	187" SQ	Black w/ Legend -0=
RA1-1G-DC-2-B	3P SPDT	20A 14V DC, 10A 28V DC	(ON)-OFF-(ON)	187" SQ	Black
RA1-1H-DC-2-B	3P SPDT	20A 14V DC, 10A 28V DC	ON-OFF-(ON)	187" SQ	Black
RA1-1A-DC-2-AL	3P SPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Amber
RA1-1A-DC-2-GL	3P SPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Green
RA1-1A-DC-2-RL	3P SPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Red
RA1-1A-DC-2-UL	3P SPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Blue
RA1-2A-DC-2-B	4P DPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black
RA1-2A-DC-2-B-1	4P DPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black w/ Legend 0-
RA1-2A-DC-2-B-2	4P DPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black w/ Legend ON-OFF
RA1-2A-DC-2-B-3	4P DPST	20A 14V DC, 10A 28V DC	OFF-ON	187" SQ	Black w/ Legend Point
RA1-2D-DC-2-B	6P DPDT	20A 14V DC, 10A 28V DC	ON-ON	187" SQ	Black
RA1-2E-DC-2-B	6P DPDT	20A 14V DC, 10A 28V DC	ON-(ON)	187" SQ	Black
RA1-2F-DC-2-B	6P DPDT	20A 14V DC, 10A 28V DC	ON-OFF-ON	187" SQ	Black
RA1-2F-DC-2-B-5	6P DPDT	20A 14V DC, 10A 28V DC	ON-OFF-ON	187" SQ	Black w/ Legend -0=
RA1-2G-DC-2-B	6P DPDT	20A 14V DC, 10A 28V DC	(ON)-OFF-(ON)	187" SQ	Black
RA1-2H-DC-2-B	6P DPDT	20A 14V DC, 10A 28V DC	ON-OFF-(ON)	187" SQ	Black
RA1-2A-DC-2-AL	4P DPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Amber
RA1-2A-DC-2-GL	4P DPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Green
RA1-2A-DC-2-RL	4P DPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Red
RA1-2A-DC-2-UL	4P DPST	20A 14V DC	OFF-ON	187" SQ	Fully Illuminated LED-d Blue
RA1-1A-AC-2-B	2P SPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black
RA1-1A-AC-2-B-1	2P SPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black w/ Legend 0-
RA1-1A-AC-2-B-2	2P SPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black w/ Legend ON-OFF
RA1-1A-AC-2-B-3	2P SPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black w/ Legend Point
RA1-1A-AC-2-R	2P SPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black&Red
RA1-1B-AC-2-B	2P SPST	16A 125V AC, 10A 250V AC	OFF-(ON)	187" SQ	Black
RA1-1C-AC-2-B	2P SPST	16A 125V AC, 10A 250V AC	ON-(OFF)	187" SQ	Black
RA1-1D-AC-2-B	3P SPDT	16A 125V AC, 10A 250V AC	ON-ON	187" SQ	Black
RA1-1D-AC-2-B-4	3P SPDT	16A 125V AC, 10A 250V AC	ON-ON	187" SQ	Black w/ Legend I-II
RA1-1E-AC-2-B	3P SPDT	16A 125V AC, 10A 250V AC	ON-(ON)	187" SQ	Black
RA1-1F-AC-2-B	3P SPDT	16A 125V AC, 10A 250V AC	ON-OFF-ON	187" SQ	Black
RA1-1F-AC-2-B-5	3P SPDT	16A 125V AC, 10A 250V AC	ON-OFF-ON	187" SQ	Black w/ Legend -0=
RA1-1G-AC-2-B	3P SPDT	16A 125V AC, 10A 250V AC	(ON)-OFF-(ON)	187" SQ	Black
RA1-1H-AC-2-B	3P SPDT	16A 125V AC, 10A 250V AC	ON-OFF-(ON)	187" SQ	Black
RA1-2A-AC-2-B	4P DPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black
RA1-2A-AC-2-B-1	4P DPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black w/ Legend 0-
RA1-2A-AC-2-B-2	4P DPST	16A 125V AC, 10A 250V AC	OFF-ON	187" SQ	Black w/ Legend ON-OFF
RA1-2E-AC-2-B	6P DPDT	16A 125V AC, 10A 250V AC	ON-(ON)	187" SQ	Black
RA1-2F-AC-2-B	6P DPDT	16A 125V AC, 10A 250V AC	ON-OFF-ON	187" SQ	Black
RA1-2F-AC-2-B-5	6P DPDT	16A 125V AC, 10A 250V AC	ON-OFF-ON	187" SQ	Black w/ Legend -0=
RA1-2G-AC-2-B	6P DPDT	16A 125V AC, 10A 250V AC	(ON)-OFF-(ON)	187" SQ	Black
RA1-2H-AC-2-B	6P DPDT	16A 125V AC, 10A 250V AC	ON-OFF-(ON)	187" SQ	Black
